RFID螺丝标签

点击次数:  更新时间:2021/5/13 10:23:06

产品规格书 Specification

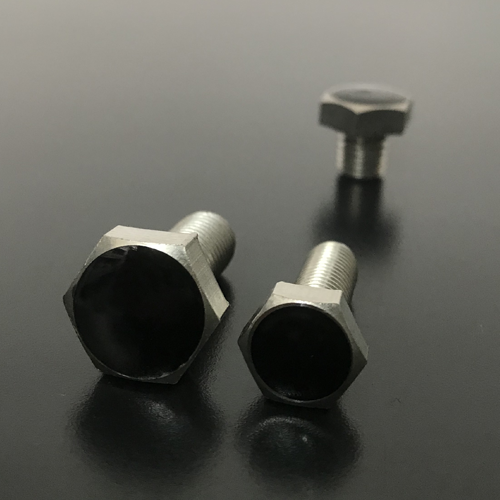

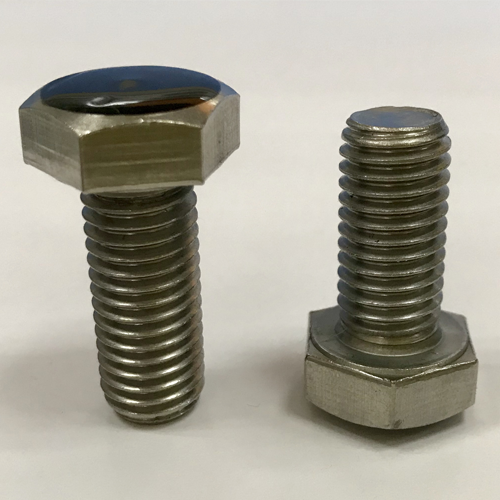

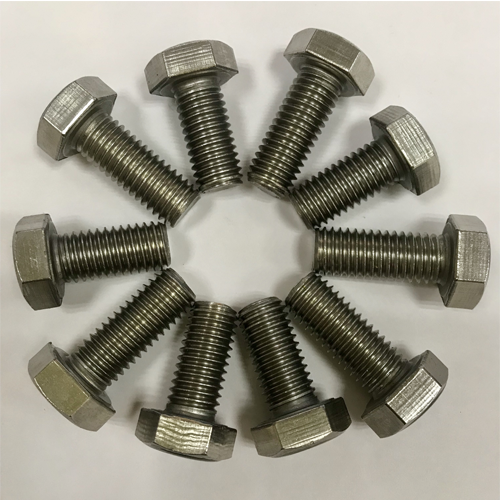

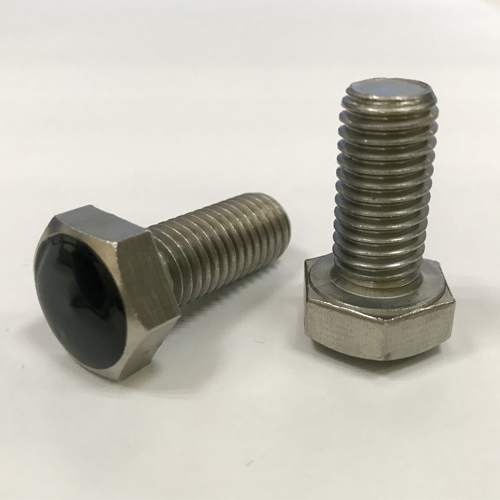

产品名称Part-Name:    超高频螺丝标签  UHF RFID SCREW TAG

产品型号Part-Number KMR50120819



产品特性 Product Feature


Chip Protocol:(芯片协议:)

EPC Class1 Gen2,ISO 18000-6C

Working Frequency:(工作频率:)

EU:865-868MHz or US:902-928MHz

IC Type:(IC 类型:)

Alien Higgs-3

Memory:(内存:)

EPC 96bit(up to 480bits),User 512bit, TID64bit

Functionality:(功能:)

Read / write(读/写)

Applicable Surface:(适用表面:)

Metal Surfaces(金属表面)

Fixed reader read range

(30dBm/8dBi):(固定读写器读距:)

80cm-US,

Handheld reader read range

(R2000/3dBi):(手持读写器读距:)

120cm-US,

Physicial Specification(产品规格:)

Dimension:(尺寸:)

60mm*18.7mm*12mm

Material:(材料:)

 Steel(304不锈钢)

Mounting Methods:(安装工艺:)

 Metal Embedded(嵌入金属)

Weight/piece:(每个的重量:)

50.6g

Environmental Parameter:(环境参数:)

IP Rating:(防水等级:)

IP66

Storage Temperature:(存储温度:)

-40degree to +150 degree

Operation Temperature:(工作温度:)

-40degree to +180 degree

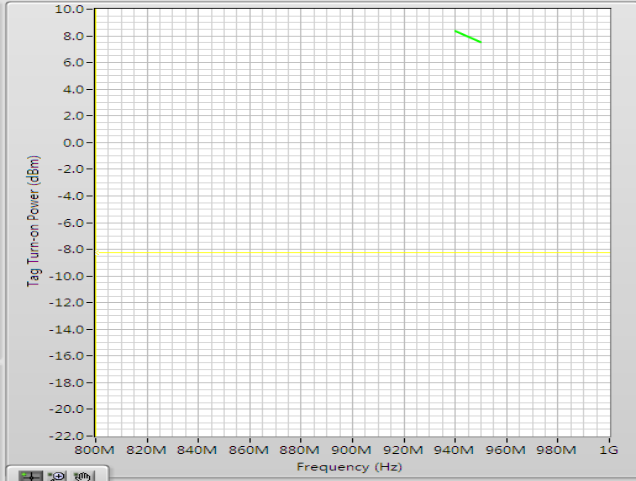

 性能曲线参考图Reference of Graphic Performance







 应用场景Application


RFID资产管理,模具管理,大型设备管理,集装箱管理,特殊金属表面管理


RFID asset management,Mold management,big equipment management,container management,or special metal surface management
